For Sale - UM - 21009 - Krauss Maffei 800 Ton Injection Moulding Machine

Specification

Reference Numbers

UM - 21009

Product

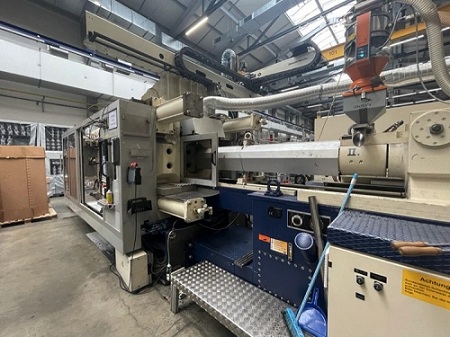

Krauss Maffei 800 Ton Injection Moulding Machine

Year Of Manufacture

1997

Location

Europe

Product Details

Type: KM800MC
夹紧单元
Clamping force: 8000 kN
Board dimensions (HxH): 1600 x 1510 mm
Clear width (HxH): 1120 x 1000 mm
Max tool opening: 1400 mm
Tool height min./max .:: 600 / 1100 mm
Opening length: 2000 mm
Ejector force: 228/95 kN
Injection unit: SP4350
Screw diameter: 85 mm
L / D ratio: 22
Injection pressure: 1953 bar
Injection volume: 2185 cm3
Injection weight: 1988 g / PS
Pump power: 110kW
Heating power: 51 kW
Dimensions and weight: 43 tons
9.98 x 2.86 x 2.40 m
